China's Best Fully Continuous Oil Refining Plant Manufacturer

The Guance Machinery fully continuous oil refining plant integrates a series of sophisticated processes, from degumming and neutralization to bleaching and deodorization, into a seamless, uninterrupted workflow.

Raw Material

Our designs accommodate a wide variety of raw material solutions, including crude soybean oil, palm oil, olive oil, rapeseeds oil, coconut oil, mustard oil and animal fat oil processing.

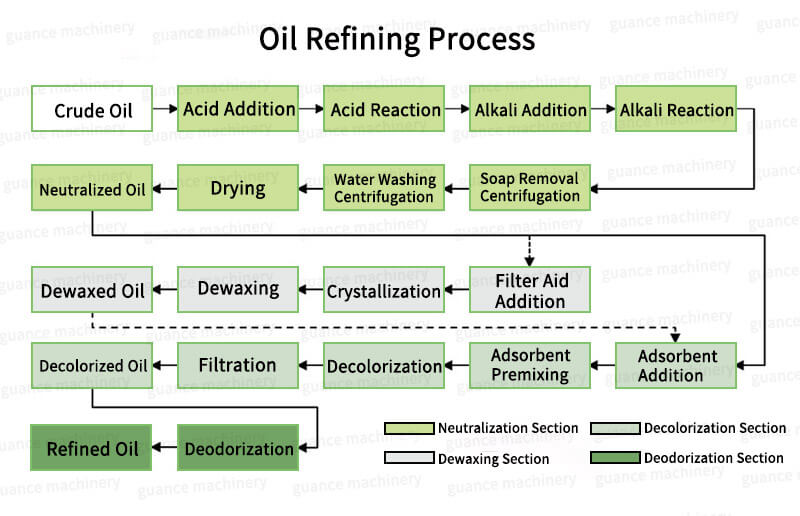

Fully Continuous Oil Refining Process

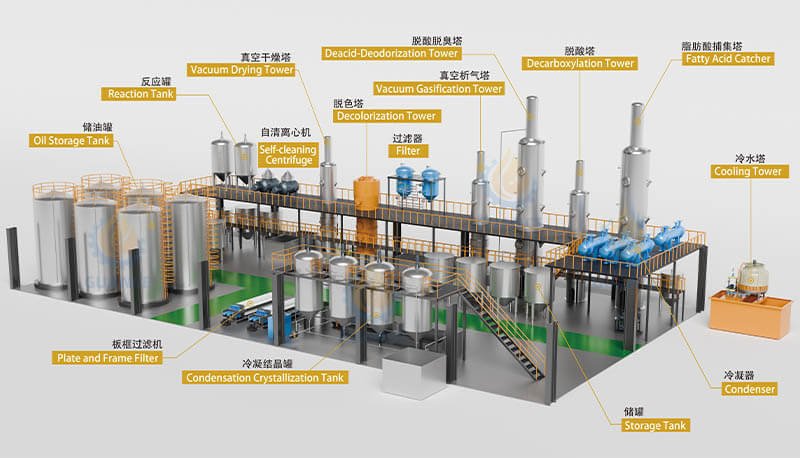

A typical Guance Machinery fully continuous oil refining plant incorporates the following core processes:

1. Continuous Degumming and Neutralization

Crude oil is pre-heated, then treated with phosphoric acid to convert non-hydratable gums into hydratable forms.

Subsequently, caustic soda (NaOH) solution is precisely introduced to neutralize free fatty acids (FFA), forming soapstock. High-speed centrifuges efficiently separate the soapstock from the neutral oil.

2. Continuous Bleaching

The neutral oil is heated under vacuum, and bleaching earth (activated clay) is added.

This process adsorbs pigments, residual soap, and other impurities, improving the oil’s color and stability. The spent bleaching earth is then removed via plate oil filter machine.

3. Continuous Deodorization

Bleached oil enters a high-vacuum, high-temperature (typically 240-270°C) deodorizer.

Steam is injected to strip away volatile compounds, including remaining free fatty acids, aldehydes, and ketones, which contribute to undesirable flavors and odors. This stage is crucial for achieving a bland, stable edible oil.

4. Continuous Dewaxing

For certain oils like sunflower seed oil or corn germ oil, a dewaxing unit is integrated.

This process cools the oil to crystallize waxes, which are then separated by filtration, preventing cloudiness at lower temperatures.

Final Product

Technical Specifications and Customization

Key performance indicators typically achieved by our plants include:

Indicator	Purpose
Refining Loss	< 1.5% - 2.5% (depending on crude oil quality)
Residual FFA in Refined Oil	< 0.05%
Oil Color (Lovibond)	2.0R Max (for specific oils)
Peroxide Value (PV)	< 0.5 meq/kg
Power Consumption	30-50 kWh/ton refined oil (approximate)
Steam Consumption	150-250 kg/ton refined oil (approximate)

Note: Data is for reference only; actual raw materials shall prevail.

We provide comprehensive project engineering, from initial consultation and plant design to equipment manufacturing, installation, and commissioning.

Our expertise ensures a refining solution perfectly matched to your production goals and local operating conditions.

Advantages of Continuous Refining

Consistent Product Quality: Parameters like temperature, pressure, and chemical dosages are maintained constant.

Enhanced Efficiency: Continuous operation eliminates downtime between batches, significantly increasing overall throughput and reducing labor requirements.

Lower Operating Costs: Optimized energy consumption, reduced chemical usage, and efficient heat recovery contribute to substantial cost savings.

Scalability: Easily adaptable to various capacities ranging from 30 TPD to 1000 TPD or more.

Equipment Specifications

Model	Capacity TPD	Power KW	Area L×W m
FCRP-30	30	85	18×9
FCRP-50	50	105	24×9
FCRP-100	100	165	30×10
FCRP-200	200	260	36×12
FCRP-300	300	340	42×14
FCRP-500	500	480	48×16
FCRP-1000	1000	750	60×20
FCRP-2000	2000	1200	72×24
FCRP-3000	3000	1650	80×28

Comprehensive After-Sales Service and Support

Professional Installation and Commissioning: Our experienced engineers supervise installation and conduct thorough commissioning to ensure peak performance.

Operator Training: Comprehensive training programs for your operational staff on plant operation, maintenance, and troubleshooting.

Technical Consultation: Ongoing technical support and expert advice to address any operational challenges.

Spare Parts Availability: Readily available genuine spare parts to minimize downtime and ensure continuous production.

Partner with Guance Machinery for Your Refining Needs

If you are considering upgrading your refining capabilities or establishing a new edible oil production facility, contact Guance Machinery today.

Our Certificate

Guance Machinery Equipment possess multiple international certificates.

Our Cases

From palm oil mills in Southeast Asia to sunflower oil refineries in Europe, Guance Machinery has delivered completed projects for clients in over 100 countries, from timely delivery to successful commissioning.
