Palm Oil Processing Solutions: Complete Engineering from FFB to RBDPO
Palm Oil Processing Solutions are the fastest route to turn fresh fruit bunches (FFB) into profitable crude palm oil (CPO) and refined bleached deodorized palm oil (RBDPO).
With 30-minute sterilizing, 95% oil extraction rate (OER) and ISO 9001/CE-certified machinery, modern mills cut downtime 18% and meet EU import standards on the first shipment.
Guance Machinery explains every step—sterilization, threshing, pressing, clarification, refining, fractionation and POME treatment—so you can select equipment that raises output, minimizes effluent and wins RSPO credits.
Raw Materials to Finished Oil Legend
Palm Fruit

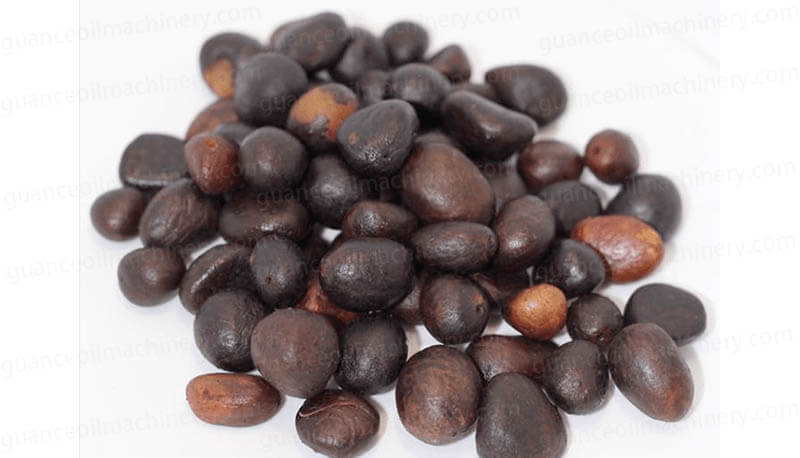

Palm Kernels

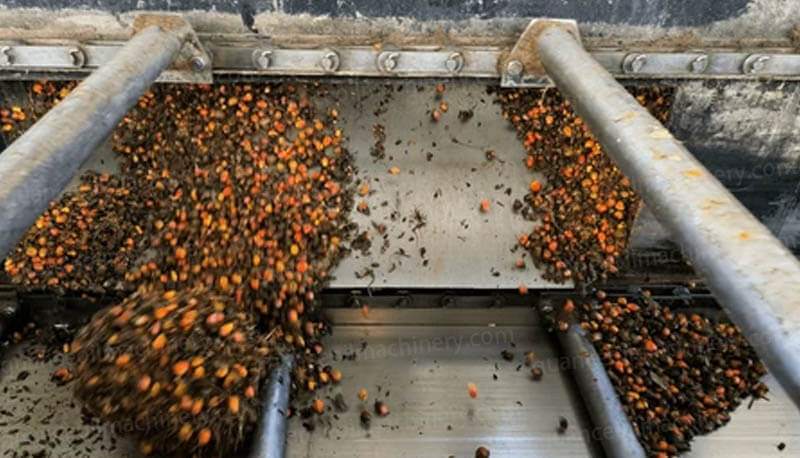

Palm Oil Pressing
Palm Oil Refining
Why Up-to-Date Palm Oil Processing Solutions Matter
- Global demand will reach 84 million t by 2030; only 2% supply growth.
- New screw presses recover +2.5% CPO per ton FFB.
- CE-marked machines clear EU safety rules; ISO 14001 cuts waste disposal cost 12%.
- Automated DCS control reduces labor 30%.
Step-by-Step Palm Oil Processing Flow Chart
Palm Oil Processing Flow Chart
1. Reception & Sterilization – Horizontal sterilizer 45 t FFB/h, 3 bar steam, 30 min.
2. Threshing – Drum stripper <0.5% lost kernels.
3. Digestion & Pressing – Twin-screw press 15% moisture cake, 23% OER.
4. Clarification – 3-phase decanter, 0.1% solids in CPO.
5. Refining – Degumming, bleaching, deacidification, deodorization (DBD) to 0.05% FFA.
6. Fractionation – Multi-stage crystallizers yield 70% olein, 30% stearin.
7. Kernel Recovery – Hammer mill, air separator, 98% clean PKO.
8. POME Treatment – Anaerobic lagoon + MBR, BOD <20 ppm, biogas for boiler.
Palm Oil Pretreatment Steps
1. Reception & Sterilization – Horizontal sterilizer 45 t FFB/h, 3 bar steam, 30 min.
2. Threshing – Drum stripper <0.5% lost kernels.
Oilseed Destoner Machine
Sheller Machine (Kernel Shell)
Pressing Extraction Process
1. Digestion & Pressing – Twin-screw press 15% moisture cake, 23% OER.
2. Clarification – Plate Frame Oil Filter, 0.1% solids in CPO.
Screw Oil Press
Plate Oil Filter Machine
Palm Oil Refining Process
Refining – Degumming, bleaching, deacidification, deodorization (DBD) to 0.05% FFA.
Degumming: Hot-water hydrate plus citric acid strip phosphatides & trace metals, cutting bleaching clay 15%.
Bleaching: 1% activated clay + 0.05% carbon under 105 °C, 20 min vacuum, adsorb pigments & peroxides for 30 R Lovibond.
Deacidification: 0.2% phosphoric acid pre-treat then 8 °Bé caustic neutralize, final FFA ≤ 0.05%, yield loss <0.3%.
Deodorization: 240 °C, 3 mbar, 90 min steam distillation remove aldehydes/ketones, zero-trans guaranteed, export odor 0.
Degumming
Decolorization
Deacidification
Deodorization
Final Product
Palm Oil: premium RBDPO & olein for frying, baking and export.
Palm Kernel Oil: food-grade PKO & olein for chocolate coating, infant formula.
Palm Kernel Meal: 21% protein meal for EU dairy feed, GMO-free certificate.
Palm Fatty Acid Distillate: 95% FFA PFAD for soap, biodiesel and oleochemicals.
Palm Stearin: hard stock for margarine, shortening and confectionery fats.
Palm Kernel Shell: carbon-neutral biomass fuel for cement kilns and power plants.
Quality indicators of fractionated palm oil
| Item | Unit | Edible Grade 1 | Edible Grade 2 |
|---|---|---|---|
| Free Fatty Acid (FFA) | % | ≤ 0.05 | ≤ 0.10 |
| Moisture & Impurities | % | ≤ 0.05 | ≤ 0.10 |
| Color (Lovibond 5¼") | R | ≤ 2.0 | ≤ 3.0 |
| Cloud Point | °C | ≤ 10 | ≤ 15 |
| Peroxide Value | meq O₂/kg | ≤ 0.5 | ≤ 1.0 |
Frequently Asked Questions About Palm Oil Processing Solutions
Q1: What is the minimum FFB tonnage per hour for a profitable palm oil processing solution?
A: A 5-ton/h modular mill fits 20 ha estate; larger lines scale to 60–120 t/h for group plantations.
Q2: Does your palm oil processing solution meet EU import limits on 3-MCPD and trans-fat?
A: Yes, the physical refining-deodorization block hits ≤1 ppm 3-MCPD and zero-trans by 240 °C thin-film deodorizer, certified by SGS.
Q3: How can I raise CPO extraction rate above 23 % with the same FFB?
A: Guance Machinery twin-screw press + low-pressure digester combo adds 2–3 % OER, giving 300 USD extra revenue every day on 30 t FFB.
Q4: Is EPC service available for overseas projects with limited local labor?
Yes, we send 2 supervisors plus Mandarin-English toolkit; remote guide your technicians for piping & cabling.
Why choose Guance Machinery solutions?
Guance Machinery palm oil processing solutions integrate high-efficiency sterilizers, twin-screw presses and zero-effluent refineries to lift CPO yield 3% while meeting CE/ISO and RSPO standards.
Ready to build your palm oil mill?
Contact us for a free consultation and equipment quote within 24 h. We offer services ranging from small oil presses to production lines and complete plant construction!
