Vegetable Oil Press Plant
Pre-treatment Plant
Pre-treatment
Oil Seed Pretreatment
Oilseeds Pretreatment

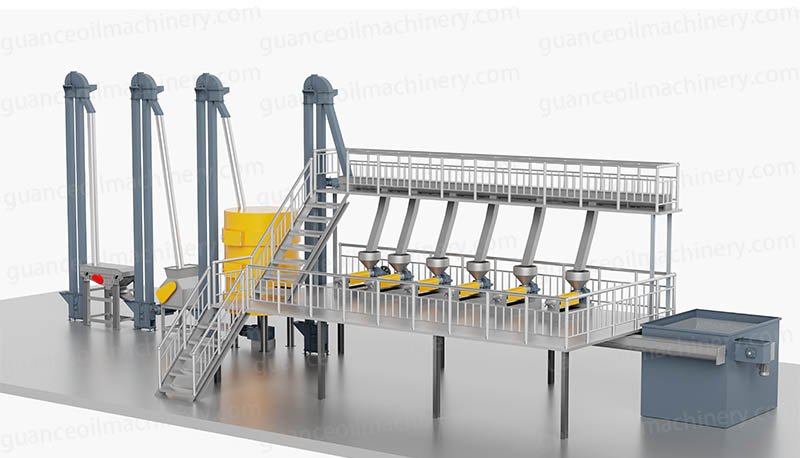

Vegetable Oil Pretreatment Production Line

The vegetable oil pretreatment production line process mainly includes: feeding, shelling, cleaning, stone removal, magnetic separation, crushing, clean grain storage, steaming and frying, and preparation for pressing.

Email: guanceoilmachinery@gmail.com

Tel/WhatsApp: +86 13938542490

Guance Machinery Oil Pretreatment Production Line Manufacturer, we design integrated systems, covers feeding, cleaning, stone removal, and magnetic separation to ensure pure, high-quality output for higher productivity.

Raw Material

Coconut

Coconut

Palm

Palm

Olive

Olive

Soybean

Soybean

Rapeseeds

Rapeseeds

Sunflower Seed

Sunflower Seed

Guance Machinery provides oil extraction solutions for various raw materials:

Such as coconut, palm, olive, soybean, rapeseeds, sesame seeds, sunflower seed, groundnut, camellia-seed, soldier fly larvae, rice bran, chia seeds, mustard seeds, corn germ, strawberry kernels, cotton seeds, flax seeds, castor beans, tea seeds, etc.

Our team can design specifically for each customer according to the different characteristics of different raw materials.

Raw Material Oil Content
Raw MaterialCoconutPalmOliveSoybeanRapeseedsSunflower seed
Oil Content(wt)60-65%45-50%15-30%18-20%38-46%35-40%

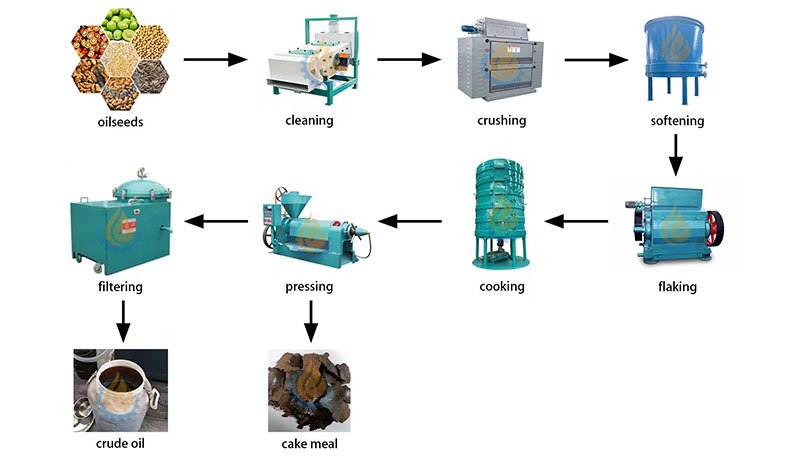

Flow Chart

Oil Pretreatment and Press Line Process

Feeding

Automated feeding systems ensure a consistent and efficient supply of raw materials to the processing line.

Shelling

By shelling machine remove the outer husks from seeds to protect machinery and improve the final oil’s purity and flavor.

Cleaning

Oil cleaning machine to raw materials are thoroughly cleaned to eliminate all impurities like dirt, sand, and plant debris.

Stone Removal

This destoner machine step removes heavier contaminants like stones and metals to safeguard our crushers and presses.

Magnetic Separation

Magnetic separator powerful magnets extract fine ferrous metal particles, ensuring metal-free, safe oil and protecting equipment.

Crushing

Crush machine grains are crushed to break their cell walls, optimizing oil yield for the pressing stage.

Clean Grain Storage

Processed grains are stored in hygienic silos to preserve freshness for continuous oil production.

Cooker

Cooker machine conditions the meal, adjusting its moisture to prepare for pressing and enhance oil release.

Related Equipment

Oilseed cleaning Machine

Oil Cleaning Machine

High-efficiency oil cleaning machine removes dust and metals etc, for smooth downstream processing.

Layered Steaming and Wok-frying Pan

Cooker Machine

For oilseeds such as rapeseed and sunflower seeds, multi-layer steam stir-frying is performed to soften the oil and adjust the moisture temperature.

Air Separation Stone Remover

Oilseed Destoner Machine

The wind and vibration are used to screen and remove stones and dirt from the grains.

Technical Parameters

Parameter CategorySpecificationsRemarks / Key Features
General Specifications
Processing Capacity1 – 50 Tons per 24 HoursCommon models: 5 TPD, 10 TPD, 20 TPD, 30 TPD. Scalable to customer needs.
Applicable OilseedsSoybean, Rapeseed/Canola, Sunflower, Peanut, Cottonseed, Sesame, Flaxseed, Copra, Palm Kernel, etc.Handles a wide range of common oil-bearing materials.
Overall Oil YieldVaries by seed: ~90-98 % of theoretical extractable oil.Dependent on seed type, preparation, and pressing condition.

Product Advantages

1. Boosts Oil Yield: Crushing into uniform particles plus optimized steaming enhances raw material contact with screw oil press, directly improving final oil output.

2. Ensures Oil Purity: Multi-stage impurity removal (cleaning, stone/magnetic separation) eliminates contaminants, meeting food safety standards.

3. Flexible Material Adaptation: Tailored shelling, crushing, and steaming fits various oilseeds (soybean, peanut, sunflower), no need for extra equipment.

4. Reduces Waste: Temporary clean storage prevents raw material spoilage, minimizing loss before pressing.

5. Smooth Process Flow: Logical step connection (feeding→prep→press ready) cuts downtime, boosting daily production efficiency.

6. Easy Operation: Integrated steps simplify workflow, reducing training time for workers and lowering operational errors.

Final Product Quality Indicators

Take Palm Oil As an Example
ItemsQuality Indicators
Palm OleinPalm Super OleinPalm Stearin
Melting Point (°C)≤24≤19.5≥44
ClarityClear and transparent at 40°C
Acid Acids (Calculated as Potassium Hydroxide) (mg/g) ≤0.20.4
Peroxide Value (mmol/kg) ≤5.0
Odor and Flavor ≤Has the inherent smell and taste of palm oil, no foreign odor
Color (Lovibond Colorimeter 133.4mm) ≤Yellow 3.0   Red 3.0
Moisture and Volatile Matter (%) ≤0.05
Insoluble Impurities (%) ≤0.05
inquire

Our Certificate

Guance Machinery Equipment possess multiple international certificates.

Our Certificate
Our Certificate T
Our Certificate F
Our Certificate A
Our Certificate B

Our Cases

From palm oil mills in Southeast Asia to sunflower oil refineries in Europe, Guance Machinery has delivered completed projects for clients in over 100 countries, from timely delivery to successful commissioning.
